ZGS11(13) Series Combined Transformer
For more details, pleaseContact us!
Key Words
- Product Description
-
ZGS11Series of combined substation, also known as American box transformer, is based on the characteristics of foreign box transformer and structure combined with the requirements of domestic box transformer design and development of new combined substation, mainly used in China's urban distribution network.10kVThe city network transformation and ring network system can be used both outdoors and indoors, and is suitable for distribution systems in various industrial and mining enterprises, residential quarters, stations, docks, airports, highways, subways and other places.

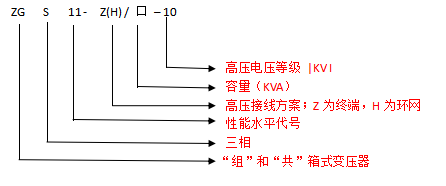

Model meaning
Use of environmental conditions
1Elevation not exceeding1000m
2Maximum temperature 40℃, minimum temperature-30C;
3Wind speed: equivalent34m/s(not greater700Pa);
4Temperature: average daily relative temperature ≤95%; monthly mean temperature average=95%;
52. Shock-proof: horizontal acceleration is not more0.4m/s2, the vertical acceleration is not greater0.15m/s2;
6Inclination of installation site: not more3°;
7Installation environment: the surrounding air is free from corrosive and flammable gas pollution, and the installation site is free from severe vibration.
Product structure characteristics
1, compact structure, small size, only the same amount of domestic products1/3-1/5around, greatly reducing the footprint;
2Fully sealed, fully insulated structure, no insulation distance, reliable guarantee of personal safety;
3The high voltage shall be protected by load switch fuse combined with electric appliance;
4Excellent high-voltage performance: low loss, low noise; strong overload capacity, strong resistance to short circuit and impact resistance;
5To meet the requirements of various low-pressure peeping, it can be selected according to the scheme, or it can be designed by itself;
6The cable head has200AElbow type cable connector and600ATThere are two types of joints, elbow type cable joints are suitable for cable cross-sectional area.35-185mm2,TThe type joint is suitable for the cross-sectional area of the electron mirror.35 500mm2The material of the electric lens is divided into steel core and aluminum core, both of which can be configured as insulated zinc oxide demand avoidance devices.200AThe attached electronic lens can be plugged and unplugged with load, and can also play the role of isolation switch.
Serial Number
RatedCapacity (KVA）
Rated voltage
Pressure regulating range (%）
Join Group Label
No-load current (%）
Loss (W）
Impedance voltage (%）
Noise (dB）
Temperature rise (K）
High pressure (KV）
Low pressure（KV）
No-load loss
Load loss
S9
S10/11
S9
S10
S11
S9/S10/S11
1
30
6
6.3
10
0.4
0.69
±5
±2*2.5
Yyn0
Dyn11
2.2
2.0
130
110
100
600
4
55
Top oil mix55
Coil
65
2
50
2.0
1.8
170
150
130
870
3
63
1.9
1.5
200
180
150
1049
4
80
1.7
1.2
250
200
180
1250
5
100
1.6
1.1
290
230
200
1500
6
125
1.5
1.0
340
270
240
1800
7
160
1.4
1.0
400
310
280
2200
8
200
1.4
0.8
480
380
340
2600
9
250
1.2
0.8
560
460
400
3050
10
315
1.1
0.7
670
540
480
3650
11
400
1.0
0.7
800
650
570
4300
12
500
1.0
0.6
960
780
680
5150
13
630
0.9
0.6
1200
920
810
6200
4.5
14
800
0.8
0.6
1400
1120
980
7500
15
1000
0.7
0.5
1700
1320
1150
10300
16
1250
0.6
0.5
1950
1560
1360
12000
17
1600
0.6
0.5
2400
1880
1640
14500
